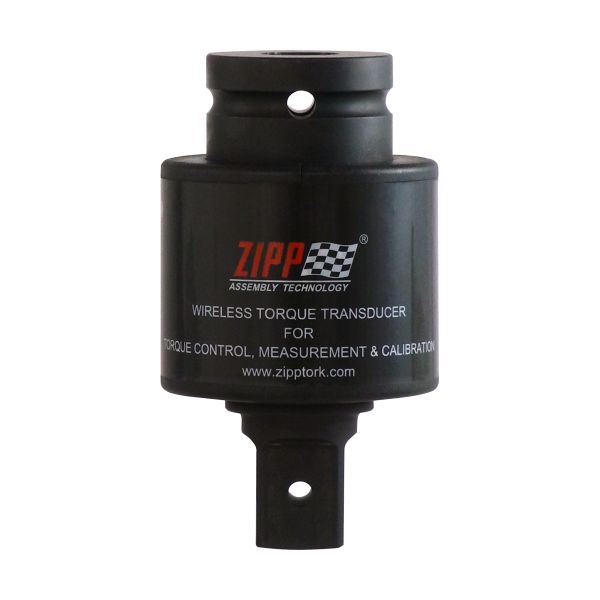

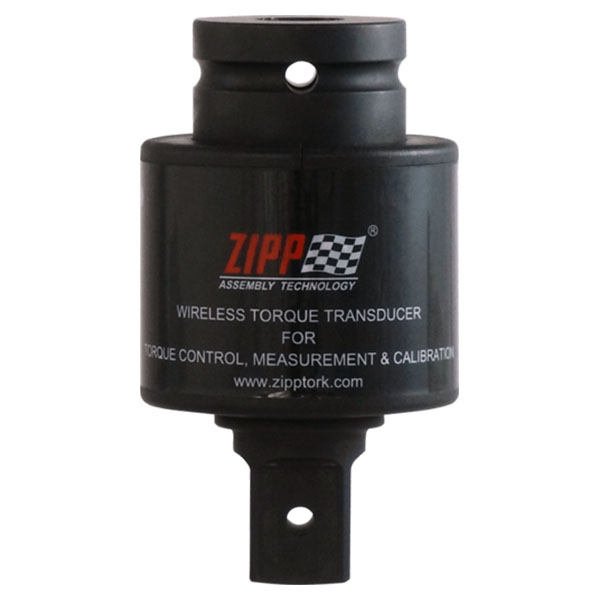

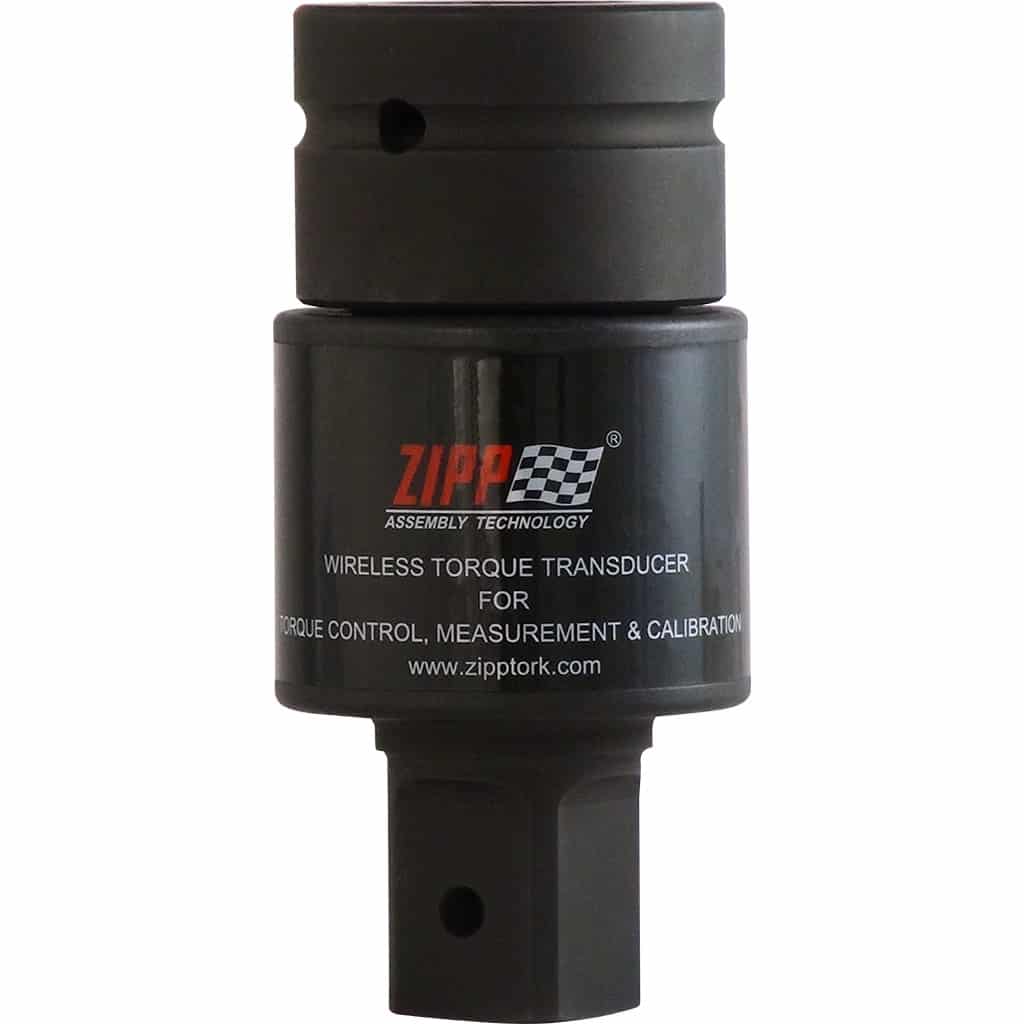

TTES Series Wireless Rotary Torque Transducer

TTES Series Wireless Rotary Torque Transducer – For air & power gear, clutch, impact, or pulse tools

TTES Series Shock & Impact Proof Wireless Rotary Torque Transducer: Advanced Torque Measurement with Durability and Precision

The TTES Series Shock and Impact-Proof Wireless Rotary Torque Transducer is a cutting-edge tool that provides accurate and reliable torque measurements in demanding environments. Engineered to withstand shock, impact, and harsh operating conditions, this transducer is ideal for applications where precision and durability are paramount.

Key Features and Benefits

• Wireless Data Transmission: The TTES Series sensor features wireless data transmission capabilities, enabling real-time torque data monitoring without the need for cumbersome cables. This enhances ease of use and flexibility, especially in complex setups or when mobility is required.
• Shock & Impact-Proof Design: Built to withstand challenging environments, the TTES Series is designed to resist shock and impact, ensuring consistent performance even in high-vibration or high-impact scenarios. This makes it suitable for automotive, aerospace, and heavy machinery industries.
• High Precision Measurement: The transducer provides highly accurate torque measurements, ensuring that critical applications are completed precisely. It can measure both static and dynamic torque, making it versatile for a wide range of tasks.
• Robust Construction: The TTES Series is constructed from high-quality materials, ensuring long-term durability. Its rugged design is resistant to wear and tear, providing reliable performance even under continuous use in harsh conditions.
• Compact and Lightweight: Despite its robust design, the transducer is compact and lightweight, making it easy to install and integrate into existing systems. Its compact form factor does not compromise performance, offering both convenience and reliability.
• Easy Calibration and Setup: The transducer is designed for easy calibration and setup, minimizing downtime and ensuring quick deployment in the field. Its user-friendly interface allows for straightforward operation, even for those new to torque measurement.
• Versatile Applications: The TTES Series is suitable for a wide range of applications, including automotive testing, industrial machinery maintenance, quality control in manufacturing, and aerospace engineering. Its versatility makes it a valuable tool for professionals across various industries.
• Real-Time Data Monitoring and Logging: The wireless capability enables real-time data monitoring and logging, providing immediate feedback and allowing for quick adjustments during testing or operations. This feature is particularly useful in quality control and testing environments where timely data is critical.

Applications

The TTES Series Shock & Impact Proof Wireless Rotary Torque Transducer is ideal for a variety of demanding applications, including:

• Automotive Testing: This device is perfect for measuring torque in automotive components during testing and development. Its impact-resistant design ensures accuracy even in high-vibration environments, such as engine testing and drivetrain analysis.
• Aerospace Engineering: Suitable for aerospace applications where precision torque measurement is critical for safety and performance. The transducer’s durability ensures reliable data in extreme conditions.
• Industrial Machinery Maintenance: Ideal for monitoring and measuring torque in industrial machinery to ensure proper operation and maintenance. Its wireless capability allows for easy integration into maintenance workflows.
• Manufacturing Quality Control: Useful for quality control processes in manufacturing, where accurate torque measurement is necessary to ensure product consistency and reliability.
• Research and Development: An essential tool for R&D teams working on new product designs or testing the limits of materials and components under various torque conditions.

Why Choose the TTES Series Shock & Impact-Proof Wireless Rotary Torque Transducer?

The TTES Series Shock- and Impact-Proof Wireless Rotary Torque Transducer offers unparalleled precision and durability in torque measurement. Its advanced wireless technology and shock and impact-resistant design make it an ideal choice for professionals who need reliable torque data in challenging environments. Whether you’re working in the automotive, aerospace, industrial machinery, or manufacturing industries, the TTES Series provides the accuracy and resilience needed to ensure the success of your projects.

• The only Wireless Rotary Torque Transducer applicable to impact or oil pulse torque tools for dynamic bolting.
• It is designed with a unique patented anti-vibration mechanism for dynamic bolting torque control under violent impacts.
• Standard Packaging: Torque Transducer, Charging Cable & Magnet Switch.
• Optional Accessories:
  1. Dongle for Android Pad or Windows PC/Laptop.
  2. Transducer Protection Cover.

Charger	Type-C 5V/1A
IO(1)	USB Type-C *1
IO(2) Wireless	RF 2.4G up to 20M
Zero Balance	<±0.5% FSD/°C
Static Accuracy	±1% FSD
Temperature	-10°C~60°C
Humidity	10~75% Non-condensing
Charging time	5% to 100%, 2 hours
Optional Dongle: P/N: DG-CP for Android P/N: DG-WIN for Window	Optional Transducer Protection Cover: P/N: TPC-100 for 20/50/100Nm P/N: TPC-250 for 180/250Nm P/N: TPC-500 for 500/750Nm P/N: TPC-2000 for 1000/1500/2000Nm

Software and Functions

• Applicable to:
  Oil Pulse Wrench, Impact Wrench, Geared Wrench, Torque Wrench, Clutch Type, Torque Tool, and click Wrench.
• Measurement: Torque, Angular Movement & Pulse Count.
• RF Working Frequency: 60 channels can be paired with TCA/TCB.
• Functions Check: When enabled, the status of power rate, signal quality, torque, angle, and other parameters is automatically checked.
• Switch: Use a magnet to turn on.
• LED Light:
  Blue/Orange twin color:
  Orange last long~Low Power, Blue last long~RF in communication, Blue twinkling~pairing with Controller, Orange
  Twinkling~Abnormal.
  Red/Green twin color: Red~In Charging, Green~Full Charge.

Minimum system requirements:

Operating system	Windows 10 or above	Android 7.0 or above
Minimum CPU	Core i3	Quad-core
Minimum system memory (RAM)	4G	3G
Minimum free storage space:	32GB	32GB

Warranty period:

• Torque Controller – 12 months from the date of purchase.
  The manufacturer will repair or replace products due to defects resulting from faulty materials or workmanship. This Warranty does not cover part failure due to a broken or missing seal label, misuse, modification, negligence, abuse, or normal wear and tear.
• Transducer –
  TTE(H) series: 12 months from purchase date or 200,000 cycles.
  TTA(H) & TTEB series: 12 months from purchase date or 500,000 cycles.
  Battery: 3 months from the date of purchase.
  The warranty for the signal acquisition board is valid for 12 months starting from the date of purchase.
  The manufacturer will repair or replace products due to defects resulting from faulty materials or workmanship. This Warranty does not cover part failure due to over-torque, using TTA(H) series on impact tools or cordless tools, broken /missing seal labels, misuse, modification, negligence, abuse, or normal wear and tear.
• Dongle – 12 months from purchase date.

The TTES series is designed for dynamic bolting works, while the TTAS series is for static torque control and measurement.
Transducers exceeding 3000Nm will be custom-made; please contact us for pricing information.
*B = Detent ball anvil, w/o B = Lock pin anvil

Item
Tnom	50~2000Nm	5~20Nm
Power	DC 3.7V / 650 mAh	DC 3.7V / 650 mAh
Measured Range	10% Tnom~100% Tnom	10% Tnom~100% Tnom
Torque Resolution (Nm)	0.1% Tnom	0.1% Tnom
Accuracy (CW)	±1%	±1%
Accuracy (CCW)	±2%	±2%
Static Measured Angle Range	0°~360°	0°~360°
Angle Resolution (Degree)	0.5°	0.5°
Maximum Torque (Nm)	100% Tnom	100% Tnom
Wireless communication	RF 2.4GHz / BT Bluetooth
Cable	USB-Type C
Charger	USB ( 5V/1A )
Operation Temperature (°C)	0°C~50°C
Storage Temperature (°C)	-10°C~60°C
