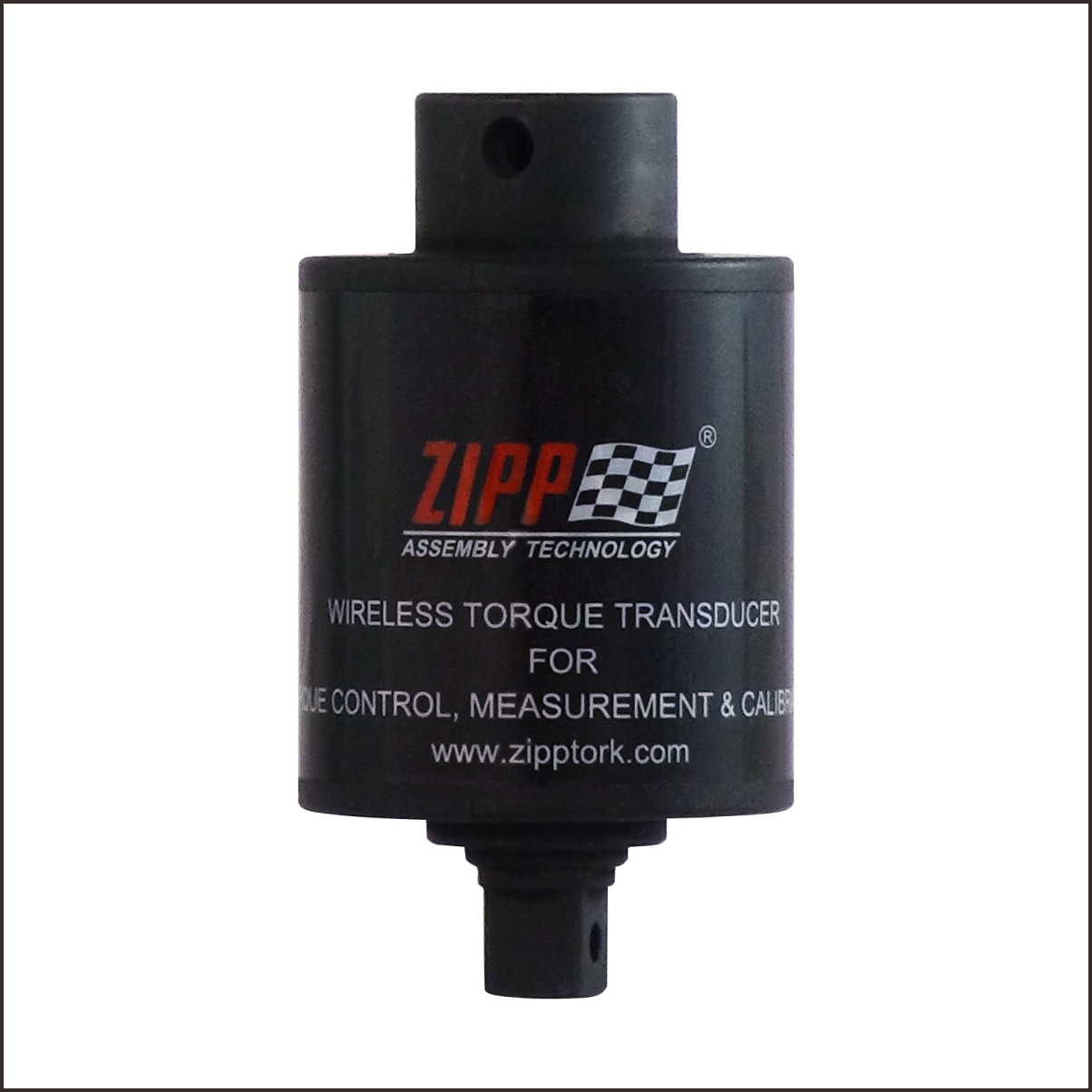

TTES / TTAS Series Wireless Rotary Torque Transducer (Square Drive)

TTES / TTAS Series Wireless Rotary Torque Transducer (Square Drive)
(Also known as Wireless Rotary Torque Sensor – Square Drive Type / Non-Contact Torque Transmitter for Impact & Pulse Tools)

A TTES / TTAS Series Wireless Rotary Torque Transducer (Square Drive) is a non-contact, high-speed torque sensor designed to measure and transmit real-time torque and angle data from rotating power tools that use square-drive sockets (such as impact wrenches, pulse tools, or torque multipliers).
It replaces traditional wired or slip-ring sensors with a wireless data transmission system, enabling accurate torque measurement under dynamic, high-vibration, and high-RPM conditions — ideal for industrial bolting, assembly, and quality verification applications.

This transducer type is designed for use in pneumatic, hydraulic, or electric torque tools.

Working Principle

Torque Sensing:Strain gauges are bonded to an internal torsion shaft within the transducer.When torque is applied through the square drive, the shaft twists slightly, causing a change in resistance proportional to the applied torque.

Signal Conditioning:The analog strain signal is converted into a digital torque value by an onboard circuit.

Wireless Transmission:Data is transmitted contactlessly to a fixed receiver unit using RF (2.4 GHz), Bluetooth — no slip rings or cables required.

Data Output & Integration:The receiver sends torque and angle data to a controller, PC, or tablet via USB, enabling real-time monitoring, recording, or closed-loop control.

Key Features

Square Drive Interface:Standard male or female square drives (e.g., ½″, ¾″, 1″, 1½″) for direct tool connection.

Wireless Data Link:2.4 GHz or Bluetooth transmission — eliminates cable drag and slip ring wear.

High Accuracy:±1 % F.S. depending on model and range.

Dynamic Range:Supports both static and impact torque up to 10,000 rpm rotational speed.

Anti-Vibration Design:Reinforced and vibration isolation design for use with impact and pulse tools.

Real-Time Data Output:Torque, angle, and cycle count can be displayed, logged, or integrated into MES/IIoT systems.

Applications

Pneumatic & Electric Impact Wrenches

Hydraulic & Pneumatic Torque Multipliers

Torque Calibration Benches & Dynamometers

Automotive, Aerospace & Heavy-Machinery Assembly

Quality Verification & Process Traceability Systems

Advantages

This system enables real-time, contactless torque monitoring on rotating tools.

Converts conventional tools into smart, data-traceable devices.

Reduces maintenance — no wear parts or cabling.

Ideal for high-vibration and high-speed industrial environments.

Integrates seamlessly with ZIPPTORK Smart Controllers (TCA/TCB/TCC) or connects directly to PC/Android via wireless dongle or Bluetooth.
