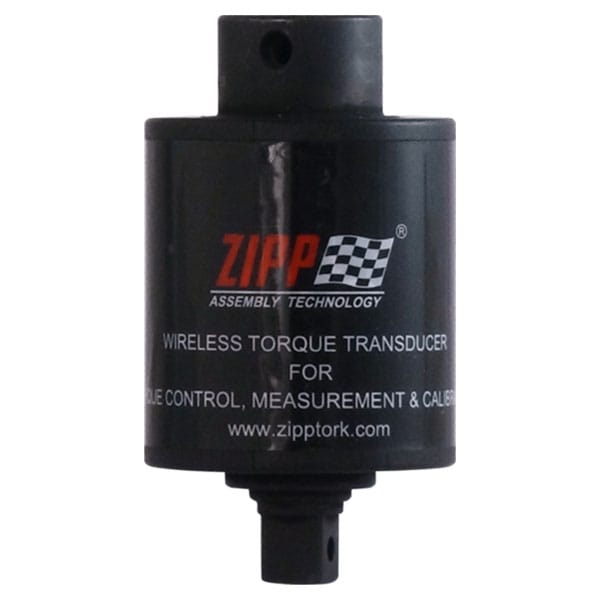

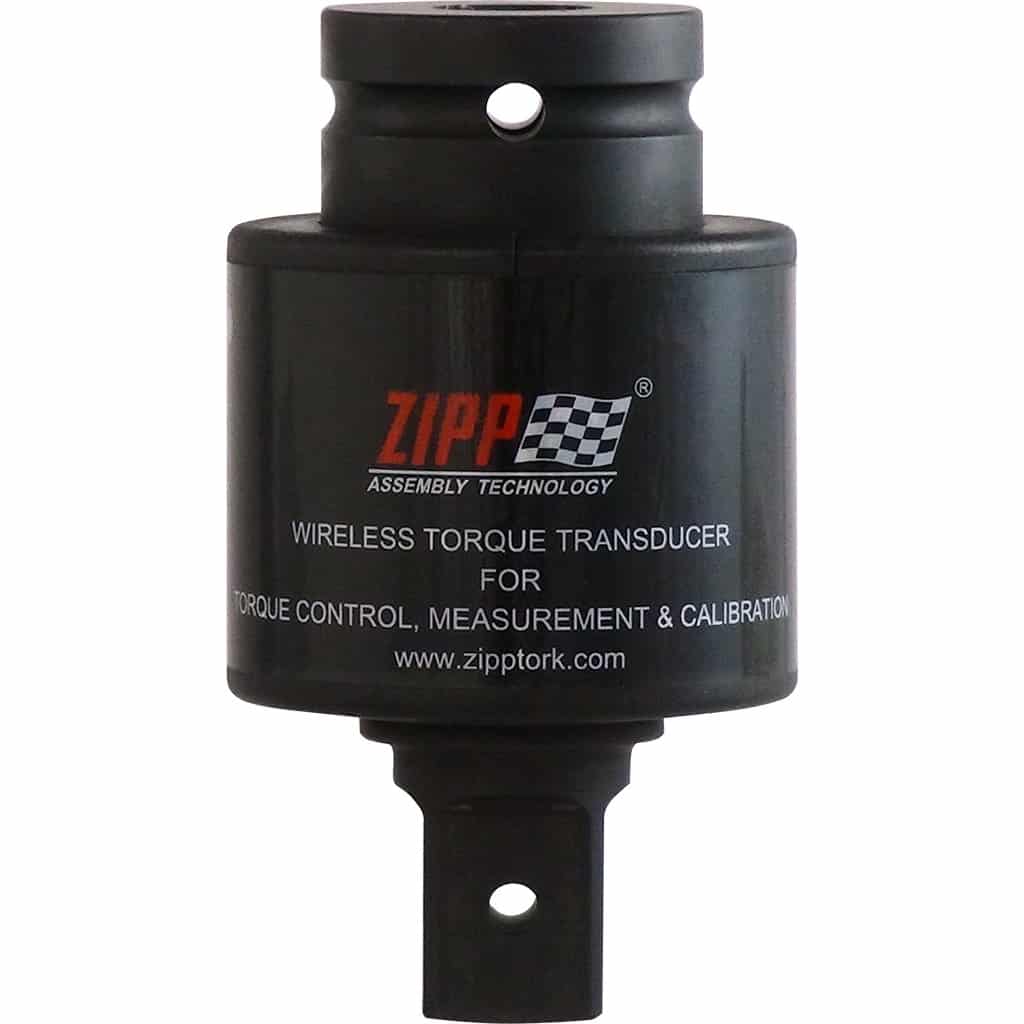

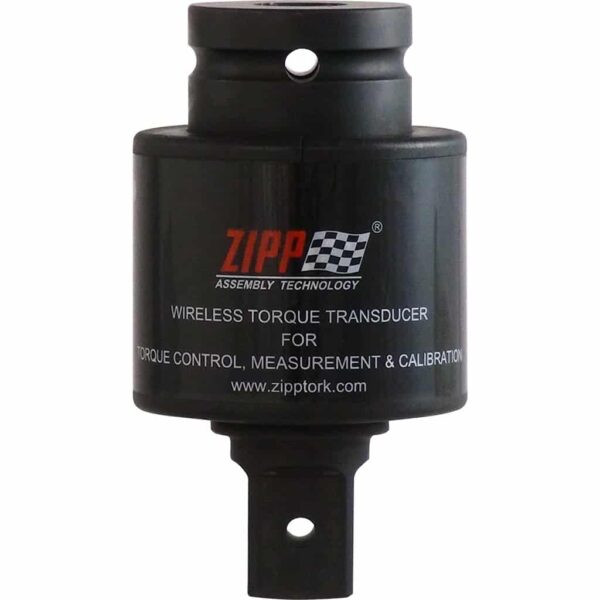

TTAS Series Wireless Rotary Torque Transducer (Angle detection)

TTAS Series Wireless Rotary Torque Transducer – For air & power gear, clutch tools with angle detection

TTAS Series Wireless Rotary Torque Transducer with Angle Detection: Precision Torque and Angle Measurement for Advanced Applications

The TTAS Series Wireless Rotary Torque Transducer with Angle Detection is an innovative tool that simultaneously provides highly accurate torque and angle measurements. This transducer is ideal for applications that require precise control and monitoring of torque and rotational angle, making it a versatile solution for the automotive, aerospace, manufacturing, and research industries.

Key Features and Benefits

• Dual Measurement Capability: The TTAS Series transducer can measure torque and rotational angle in real-time, providing comprehensive data for complex applications. This dual functionality is essential for tasks requiring precise control over force and movement, such as in assembly processes or quality control.
• Wireless Data Transmission: The TTAS Series features wireless data transmission, eliminating the need for cables and enhancing mobility, thereby simplifying installation. Real-time data can be monitored remotely, making the transducer ideal for dynamic and hard-to-reach applications.
• High Precision Torque Measurement: The transducer provides precise torque measurements with high accuracy, ensuring reliable data for critical applications. This precision is crucial for ensuring the integrity and safety of assemblies and components, particularly in high-stakes industries like aerospace and automotive.
• Angle Detection and Monitoring: In addition to torque, the TTAS Series accurately detects and measures rotational angle, enabling detailed monitoring and control of rotational movements. This feature is especially valuable in applications where torque and angle must be tightly controlled to meet stringent specifications.
• Durable and Rugged Design: Constructed from high-quality materials, the TTAS Series is built to withstand demanding industrial environments. Its robust design ensures long-lasting performance, even in demanding conditions such as high vibration, temperature extremes, and mechanical stress.
• Compact and Lightweight: The transducer’s compact and lightweight design facilitates easy integration into existing systems and setups. Despite its small size, it offers powerful performance, making it suitable for a wide range of applications where space is limited.
• Easy Calibration and Setup: The TTAS Series is user-friendly, with straightforward calibration and setup processes that minimize downtime. Its intuitive interface allows for quick adjustments and operation, making it accessible to seasoned professionals and new users.
• Real-Time Data Logging: The transducer supports real-time data logging, allowing users to record and analyze torque and angle data as it is captured. This capability is crucial for applications that require historical data for analysis, reporting, or compliance purposes.
• Versatile Application Range: The TTAS Series is designed for a wide range of applications, including automotive testing and assembly, as well as industrial machinery maintenance and quality control. Its versatility makes it an invaluable tool for professionals in multiple sectors.

Applications

The TTAS Series Wireless Rotary Torque Transducer with Angle Detection is ideal for a range of advanced applications, including:

• Automotive Assembly and Testing: This transducer is perfect for applications where precise control of torque and rotational angle is necessary, such as engine assembly, drivetrain testing, and component tightening. The transducer ensures that both parameters meet exact specifications, reducing the risk of assembly errors.
• Aerospace Engineering: Suitable for aerospace applications where accurate torque and angle measurements are critical for ensuring the safety and performance of components and assemblies. The wireless capability allows for easy integration into complex testing environments.
• Manufacturing Quality Control: Ideal for monitoring and controlling torque and angle during production, ensuring consistency and adherence to quality standards. The TTAS Series helps prevent defects and improve product reliability.
• Research and Development: The transducer is essential for R&D teams working on new product designs, materials testing, and process optimization. It provides detailed data on torque and angle, allowing for thorough analysis and refinement of designs.
• Industrial Machinery Maintenance: Useful for maintenance and servicing of industrial machinery, where precise torque and angle measurements are needed to ensure proper operation and longevity of equipment.

Why Choose the TTAS Series Wireless Rotary Torque Transducer with Angle Detection?

The TTAS Series Wireless Rotary Torque Transducer with Angle Detection provides a comprehensive solution for professionals who require accurate and reliable torque and rotational angle measurements. Its advanced wireless technology, robust construction, and dual measurement capabilities make it ideal for high-precision applications across various industries. Whether you’re involved in assembly, testing, quality control, or research, the TTAS Series provides the precision and versatility needed to achieve exceptional results.

• The only Wireless Rotary Torque Transducer applicable to impact or oil pulse torque tool for dynamic bolting.
• It is designed with a unique patented anti-vibration mechanism for dynamic bolting torque control under violent impacts.
• Standard Packaging: Torque Transducer, Charging Cable & Magnet Switch.
• Optional Accessories:
  1. Dongle for Android Pad or Windows PC/Laptop.
  2. Transducer Protection Cover.

Charger	Type-C 5V/1A
IO(1)	USB Type-C *1
IO(2) Wireless	RF 2.4G up to 20M
Zero Balance	<±0.5% FSD/°C
Static Accuracy	±1% FSD
Temperature	-10°C~60°C
Humidity	10~75% Non-condensing
Charging time	5% to 100%, 2 hours
Optional Dongle: P/N: DG-CP for Android P/N: DG-WIN for Window	Optional Transducer Protection Cover: P/N: TPC-100 for 20/50/100Nm P/N: TPC-250 for 180/250Nm P/N: TPC-500 for 500/750Nm P/N: TPC-2000 for 1000/1500/2000Nm

Software and Functions

• Applicable to:
  Oil Pulse Wrench, Impact Wrench, Geared Wrench, Torque Wrench, Clutch Type, Torque Tool, and click Wrench.
• Measurement: Torque, Angular Movement & Pulse Count.
• RF Working Frequency: 60 channels can be paired with TCA/TCB.
• Functions Check: When enabled, the status of power rate, signal quality, torque, angle, and other parameters is automatically checked.
• Switch: Use a magnet to turn on.
• LED Light:
  Blue/Orange twin color:
  Orange last long~Low Power, Blue last long~RF in communication, Blue twinkling~pairing with Controller, Orange
  Twinkling~Abnormal.
  Red/Green twin color: Red~In Charging, Green~Full Charge.

Minimum system requirements:

Operating system	Windows 10 or above	Android 7.0 or above
Minimum CPU	Core i3	Quad core
Minimum system memory (RAM)	4G	3G
Minimum free storage space:	32GB	32GB

Warranty period:

• Torque Controller – 12 months from the date of purchase.
  The manufacturer will repair or replace products due to defects resulting from faulty materials or workmanship. This Warranty does not cover part failure due to a broken or missing seal label, misuse, modification, negligence, abuse, or normal wear and tear.
• Transducer –
  TTE(H) series: 12 months from purchase date or 200,000 cycles.
  TTA(H) & TTEB series: 12 months from purchase date or 500,000 cycles.
  Battery: 3 months from the date of purchase.
  Signal acquisition board: 12 months from the date of purchase.
  The manufacturer will repair or replace products due to defects resulting from faulty materials or workmanship. This Warranty does not cover part failure due to over-torque, using TTA(H) series on impact tools or cordless tools, broken /missing seal labels, misuse, modification, negligence, abuse, or normal wear and tear.
• Dongle – 12 months from purchase date.

The TTES series is designed for dynamic bolting works, while the TTAS series is for static torque control and measurement.
Transducers exceeding 3000Nm will be custom-made; please contact us for pricing information.
*B = Detent ball anvil, w/o B = Lock pin anvil

Item
Tnom	50~2000Nm	5~20Nm
Power	DC 3.7V / 650 mAh	DC 3.7V / 650 mAh
Measured Range	10% Tnom~100% Tnom	10% Tnom~100% Tnom
Torque Resolution (Nm)	0.1% Tnom	0.1% Tnom
Accuracy (CW)	±1%	±1%
Accuracy (CCW)	±2%	±2%
Static Measured Angle Range	0°~360°	0°~360°
Angle Resolution (Degree)	0.5°	0.5°
Maximum Torque (Nm)	100% Tnom	100% Tnom
Wireless communication	RF 2.4GHz
Cable	USB-Type C
Charger	USB ( 5V/1A )
Operation Temperature (°C)	0°C~50°C
Storage Temperature (°C)	-10°C~60°C
