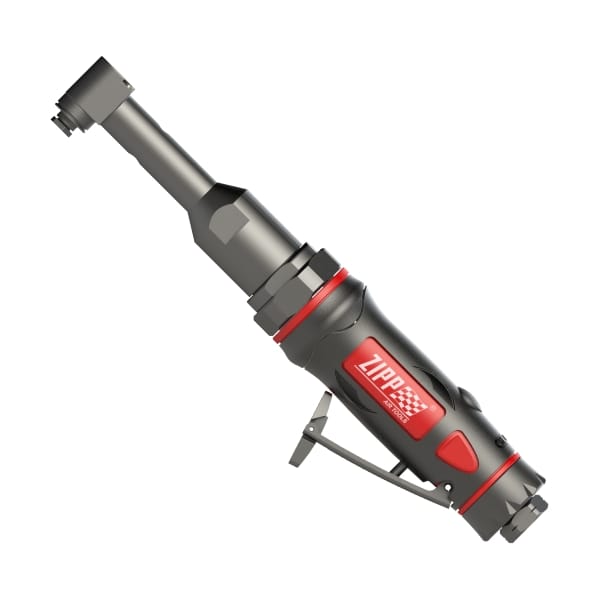

ZD2349 90˚ Industrial Angle Drill – Collet Type
The ZD2349 90˚ Industrial Angle Drill is a precision-engineered tool designed for demanding drilling applications in tight and challenging spaces. Its 90-degree angled head and collet spindle design ensure exceptional control, accuracy, and compatibility with various drill bits and attachments, making it ideal for aerospace, automotive, and heavy industrial environments.
Key Features:
🔹 90-Degree Angled Head Design
Provides optimal access in confined or obstructed areas.
Ideal for drilling at precise right angles.
🔹 Collet-Type Spindle
Allows for precise bit holding and improved concentricity.
Compatible with various collet sizes for enhanced versatility.
🔹 High-Torque, Industrial-Grade Motor
Delivers reliable power for heavy-duty applications.
Ensures consistent drilling performance over prolonged use.
🔹 Compact, Lightweight, and Ergonomic
Minimizes user fatigue during extended operations.
Enhanced balance for improved maneuverability.
🔹 Durable, Heavy-Duty Construction
Designed to withstand harsh industrial environments.
Built for continuous, high-reliability use.
Typical Applications:
✅ Aerospace and Aviation Maintenance
✅ Metal Fabrication and Assembly
✅ Precision Drilling in Tight Spaces
✅ Automotive Assembly
✅ Industrial Manufacturing
Why Choose the ZD2349?
✅ Precision in Tight Spaces: 90-degree head allows for easy access to confined areas.
✅ Versatile Collet System: Compatible with a wide range of bit sizes and types.
✅ Durability You Can Trust: Designed for demanding industrial applications.
✅ Operator Comfort: The ergonomic design reduces fatigue during extended work hours.
The ZD2349 90˚ Industrial Angle Drill is the professional’s choice for high-precision drilling tasks where space is limited and reliability is critical. This tool combines robust performance with precision control, ensuring your projects are completed to the highest standard.
- 2.4, 2.5, 3.1, 3.2, 4.5, 4.6, 5.8 & 5.9 mm collect will be supplied with each tool
Specification:
- Collet Capacity: 2.4~5.9 mm
- Free Speed: 4000 rpm
- Net Weight: 1.4(0.64) lbs(kgs)
- Overall Length: 240 mm
- Avg. Air Cons: 3(84) cfm(l/min)
- Sound Pressure: 81.5 dB(A)
- Vibration Level: <2.5 m/s²
- Air Inlet Size:1/4″ PT/NPT
- Min. Hose Size: 3/8(10) inch(mm)
 |
| Two Gear Mechanism |
| Model | Spindle Thread inch | Chuck/Collet Capacity inch(mm) | Free Speed rpm | Net Weight lbs(kgs) | Overall Length mm | Avg. Air Cons cfm(l/min) | Sound Pressure dB(A) | Vibration Level m/s² |
| ZD2328 | 1/4″-28 | – | 4000 | 1.4(0.64) | 240 | 3(84) | 81.5 | <2.5 |
| ZD2328L | 1/4″-28 | – | 4000 | 1.65(0.75) | 308 | 3(84) | 81.5 | <2.5 |
| ZD2329 | 1/4″-28 | – | 4000 | 1.4(0.64) | 256 | 3(84) | 81.5 | <2.5 |
| ZD2329L | 1/4″-28 | – | 4000 | 1.65(0.75) | 333 | 3(84) | 81.5 | <2.5 |
| ZD2331 | – | 1/8(3) | 4000 | 1.4(0.64) | 240 | 3(84) | 81.5 | <2.5 |
| ZD2331L | – | 1/8(3) | 4000 | 1.65(0.75) | 308 | 3(84) | 81.5 | <2.5 |
| ZD2320 | – | 1/8(3) | 4000 | 1.4(0.64) | 256 | 3(84) | 81.5 | <2.5 |
| ZD2320L | – | 1/8(3) | 4000 | 1.65(0.75) | 333 | 3(84) | 81.5 | <2.5 |
| ZD2349 | – | (2.4~5.9) | 4000 | 1.4(0.64) | 240 | 3(84) | 81.5 | <2.5 |
| ZD2349L | – | (2.4~5.9) | 4000 | 1.65(0.75) | 308 | 3(84) | 81.5 | <2.5 |
| ZD2340 | – | (2.4~5.9) | 4000 | 1.4(0.64) | 256 | 3(84) | 81.5 | <2.5 |
| ZD2340L | – | (2.4~5.9) | 4000 | 1.65(0.75) | 333 | 3(84) | 81.5 | <2.5 |
| ZD2333 | 1/4″-28 | – | 3600 | 1.9(0.86) | 259 | 3.5(99) | 82 | <2.5 |
| ZD2333L | 1/4″-28 | – | 3600 | 2.2(1) | 327 | 3.5(99) | 82 | <2.5 |
| ZD2332 | 1/4″-28 | – | 3600 | 1.9(0.86) | 274 | 3.5(99) | 82 | <2.5 |
| ZD2332L | 1/4″-28 | – | 3600 | 2.2(1) | 351 | 3.5(99) | 82 | <2.5 |
| ZD2335 | – | 1/8(3) | 3600 | 1.9(0.86) | 259 | 3.5(99) | 82 | <2.5 |
| ZD2335L | – | 1/8(3) | 3600 | 2.2(1) | 327 | 3.5(99) | 82 | <2.5 |
| ZD2334 | – | 1/8(3) | 3600 | 1.9(0.86) | 274 | 3.5(99) | 82 | <2.5 |
| ZD2334L | – | 1/8(3) | 3600 | 2.2(1) | 351 | 3.5(99) | 82 | <2.5 |
| ZD2352 | – | (2.4~5.9) | 3600 | 1.9(0.86) | 259 | 3.5(99) | 82 | <2.5 |
| ZD2352L | – | (2.4~5.9) | 3600 | 2.2(1) | 327 | 3.5(99) | 82 | <2.5 |
| ZD2351 | – | (2.4~5.9) | 3600 | 1.9(0.86) | 274 | 3.5(99) | 82 | <2.5 |
| ZD2351L | – | (2.4~5.9) | 3600 | 2.2(1) | 351 | 3.5(99) | 82 | <2.5 |
*Exhaust Type: Adjust Side Exhaust
*Air Inlet Size: 1/4″ PT/NPT
*Minch Hose Size: 3/8(10) inch(mm)
Angle Drill Attachments
 |  |  |  |
| ZD90T Thread type Spindle Thread: 1/4″-28 | ZD90TL Thread type Spindle Thread: 1/4″-28 | ZD45T Thread type Spindle Thread: 1/4″-28 | ZD45TL Thread type Spindle Thread: 1/4″-28 |
 |  |  |  |
| ZD90CH Chuck type Chuck Capacity: 1/8(3) inch(mm) | ZD90CHL Chuck type Chuck Capacity: 1/8(3) inch(mm) | ZD45CH Chuck type Chuck Capacity: 1/8(3) inch(mm) | ZD45CHL Chuck type Chuck Capacity: 1/8(3) inch(mm) |
 |  |  |  |
