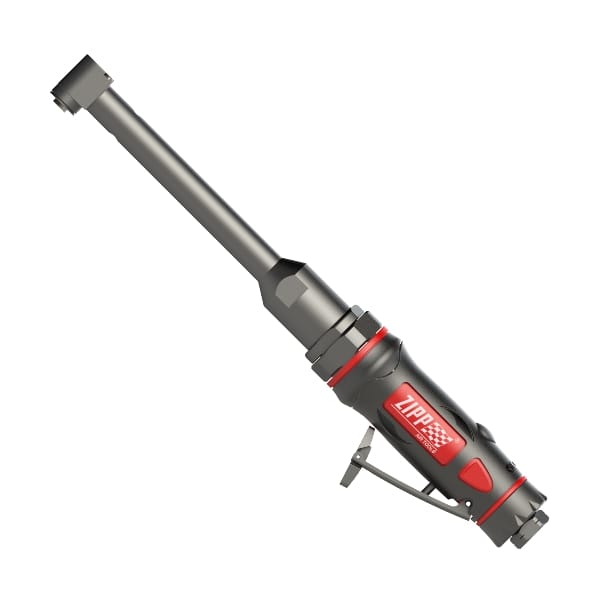

ZD2328L 90˚ Industrial Angle Drill – Threaded Type
The ZD2328L is a precision-engineered industrial angle drill designed for demanding applications that require accurate drilling in confined or restricted spaces. With a 90-degree angled head and threaded spindle design, this drill offers secure bit attachment and excellent maneuverability, making it an essential tool for aerospace, automotive, and heavy industrial sectors. The “L” long-body configuration enhances accessibility, allowing operators to drill into deep cavities, tight corners, and recessed areas with ease.
Key Features & Advantages
🔧 90° Angled Head for Tight Spaces
- Perfect for drilling in perpendicular and restricted areas where straight drills cannot reach.
- Ideal for assembly work, structural frameworks, and precision drilling tasks in aerospace fuselage, automotive bodies, and maintenance applications.
🔧 Threaded Spindle for Secure, Precise Attachment
- Compatible with threaded drill bits, countersinks, and specialty tools, ensuring a firm, safe connection under load.
- Designed for operations where rigid alignment and repeatability are critical.
🔧 Extended Body for Deep Access (L-Type)
- The long-body design allows access into deep and narrow spaces, increasing versatility across various complex assemblies.
- Enhances operator reach in tight, recessed, or obstructed areas.
🔧 High-Performance Motor
- Delivers consistent torque for drilling into metals, composites, and alloys.
- Built to withstand industrial-duty cycles with minimal maintenance.
🔧 Lightweight, Ergonomic Design
- Reduces operator fatigue for extended shift operations.
- Comfortable handling ensures precision control in delicate applications.
🔧 Robust Industrial Build
- Manufactured with durable, wear-resistant components for long-lasting reliability.
- Withstands harsh environments, impacts, and vibrations commonly found in industrial and aerospace workshops.
Applications
✅ Aerospace assembly (skin drilling, frame structures)
✅ Automotive production (body-in-white, structural drilling)
✅ Shipbuilding and heavy machinery
✅ Maintenance, repair, and overhaul (MRO)
✅ Tight and recessed area drilling tasks
Why Choose ZD2328L?
✔️ Perfect for Deep and Tight-Angle Drilling
✔️ Threaded Spindle for Specialized Bits
✔️ Extended Reach for Complex Assemblies
✔️ High-Torque, Industrial-Grade Motor
✔️ Operator-Focused Ergonomics
✔️ Engineered for Aerospace & Industrial Demands
Specification:
- Spindle Thread: 1/4″-28
- Free Speed: 4000 rpm
- Net Weight: 1.65(0.75) lbs(kgs)
- Overall Length: 308 mm
- Avg. Air Cons: 3(84) cfm(l/min)
- Sound Pressure: 81.5 dB(A)
- Vibration Level: <2.5 m/s²
- Air Inlet Size:1/4″ PT/NPT
- Min. Hose Size: 3/8(10) inch(mm)
 |
| Two-Gear Mechanism |
| Model | Spindle Thread inch | Chuck/Collet Capacity inch(mm) | Free Speed rpm | Net Weight lbs(kgs) | Overall Length mm | Avg. Air Cons cfm(l/min) | Sound Pressure dB(A) | Vibration Level m/s² |
| ZD2328 | 1/4″-28 | – | 4000 | 1.4(0.64) | 240 | 3(84) | 81.5 | <2.5 |
| ZD2328L | 1/4″-28 | – | 4000 | 1.65(0.75) | 308 | 3(84) | 81.5 | <2.5 |
| ZD2329 | 1/4″-28 | – | 4000 | 1.4(0.64) | 256 | 3(84) | 81.5 | <2.5 |
| ZD2329L | 1/4″-28 | – | 4000 | 1.65(0.75) | 333 | 3(84) | 81.5 | <2.5 |
| ZD2331 | – | 1/8(3) | 4000 | 1.4(0.64) | 240 | 3(84) | 81.5 | <2.5 |
| ZD2331L | – | 1/8(3) | 4000 | 1.65(0.75) | 308 | 3(84) | 81.5 | <2.5 |
| ZD2320 | – | 1/8(3) | 4000 | 1.4(0.64) | 256 | 3(84) | 81.5 | <2.5 |
| ZD2320L | – | 1/8(3) | 4000 | 1.65(0.75) | 333 | 3(84) | 81.5 | <2.5 |
| ZD2349 | – | (2.4~5.9) | 4000 | 1.4(0.64) | 240 | 3(84) | 81.5 | <2.5 |
| ZD2349L | – | (2.4~5.9) | 4000 | 1.65(0.75) | 308 | 3(84) | 81.5 | <2.5 |
| ZD2340 | – | (2.4~5.9) | 4000 | 1.4(0.64) | 256 | 3(84) | 81.5 | <2.5 |
| ZD2340L | – | (2.4~5.9) | 4000 | 1.65(0.75) | 333 | 3(84) | 81.5 | <2.5 |
| ZD2333 | 1/4″-28 | – | 3600 | 1.9(0.86) | 259 | 3.5(99) | 82 | <2.5 |
| ZD2333L | 1/4″-28 | – | 3600 | 2.2(1) | 327 | 3.5(99) | 82 | <2.5 |
| ZD2332 | 1/4″-28 | – | 3600 | 1.9(0.86) | 274 | 3.5(99) | 82 | <2.5 |
| ZD2332L | 1/4″-28 | – | 3600 | 2.2(1) | 351 | 3.5(99) | 82 | <2.5 |
| ZD2335 | – | 1/8(3) | 3600 | 1.9(0.86) | 259 | 3.5(99) | 82 | <2.5 |
| ZD2335L | – | 1/8(3) | 3600 | 2.2(1) | 327 | 3.5(99) | 82 | <2.5 |
| ZD2334 | – | 1/8(3) | 3600 | 1.9(0.86) | 274 | 3.5(99) | 82 | <2.5 |
| ZD2334L | – | 1/8(3) | 3600 | 2.2(1) | 351 | 3.5(99) | 82 | <2.5 |
| ZD2352 | – | (2.4~5.9) | 3600 | 1.9(0.86) | 259 | 3.5(99) | 82 | <2.5 |
| ZD2352L | – | (2.4~5.9) | 3600 | 2.2(1) | 327 | 3.5(99) | 82 | <2.5 |
| ZD2351 | – | (2.4~5.9) | 3600 | 1.9(0.86) | 274 | 3.5(99) | 82 | <2.5 |
| ZD2351L | – | (2.4~5.9) | 3600 | 2.2(1) | 351 | 3.5(99) | 82 | <2.5 |
*Exhaust Type: Adjust Side Exhaust
*Air Inlet Size: 1/4″ PT/NPT
*Minch Hose Size: 3/8(10) inch(mm)
Angle Drill Attachments
 |  |  |  |
| ZD90T Thread type Spindle Thread: 1/4″-28 | ZD90TL Thread type Spindle Thread: 1/4″-28 | ZD45T Thread type Spindle Thread: 1/4″-28 | ZD45TL Thread type Spindle Thread: 1/4″-28 |
 |  |  |  |
| ZD90CH Chuck type Chuck Capacity: 1/8(3) inch(mm) | ZD90CHL Chuck type Chuck Capacity: 1/8(3) inch(mm) | ZD45CH Chuck type Chuck Capacity: 1/8(3) inch(mm) | ZD45CHL Chuck type Chuck Capacity: 1/8(3) inch(mm) |
 |  |  |  |
