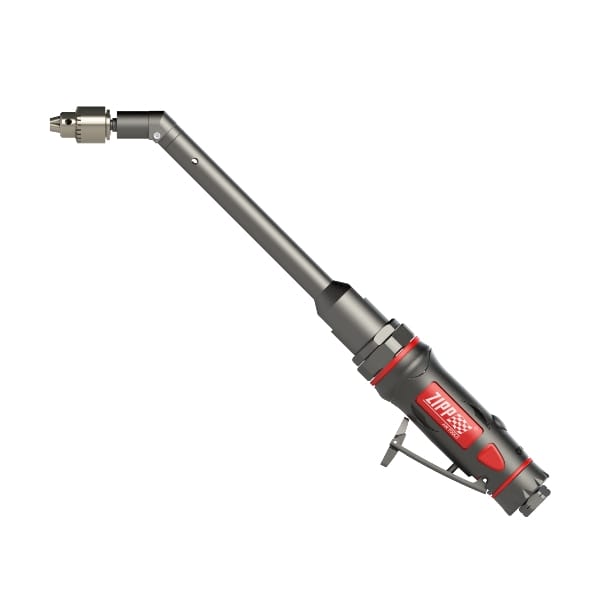

ZD2320L 45˚ Industrial Angle Drill – Chuck Type
The ZD2320L is a high-performance 45-degree industrial angle drill, specifically designed for precision work in tight, confined spaces where standard drills cannot reach. Featuring a chuck-type spindle for versatile tooling options, this model is ideal for aerospace, automotive, and industrial manufacturing environments requiring precision hole-making, reaming, and deburring. Its lightweight, ergonomic design ensures optimal comfort for operators during extended use, while the heavy-duty construction guarantees reliability and durability in demanding applications.
Key Features & Advantages
✅ 45° Angled Head for Precision in Confined Areas
- Specifically designed for tight spaces where straight or 90° angle drills are impractical.
- Ideal for complex assemblies, aircraft skin drilling, and structural work.
✅ Chuck-Type Spindle for Maximum Tooling Flexibility
- Compatible with a wide range of drill bits, countersinks, and reamers.
- Facilitates quick tool changes for enhanced productivity.
✅ Lightweight & Ergonomic Design
- The “L” in ZD2320L signifies a lightweight, operator-friendly design that minimizes fatigue.
- Balanced for superior control and accuracy in precision tasks.
✅ Robust Industrial-Grade Motor
- Delivers consistent torque and speed for high-precision drilling in a wide range of materials.
- Engineered for continuous operation in demanding industrial environments.
✅ Durable Construction for Long-Term Use
- High-quality materials and precision engineering ensure extended service life.
- Withstands rigorous use in industries like aerospace, shipbuilding, and MRO.
✅ Safety & Comfort Features
- Optimized grip design for enhanced handling.
- Low vibration operation for improved operator comfort and reduced strain.
Applications
🔹 Aerospace assembly (fuselage, wings, bulkheads)
🔹 Automotive manufacturing and repair
🔹 Precision metalworking and fabrication
🔹 Shipbuilding and marine engineering
🔹 MRO and industrial maintenance
Why Choose ZD2320L?
✔️ Precision 45° angle design for confined spaces
✔️ Versatile chuck-type spindle for multiple tool types
✔️ Lightweight for reduced fatigue
✔️ Consistent industrial-grade performance
✔️ Built to last in demanding environments
Specification:
- Chuck Capacity: 1/8/(3) inch(mm)
- Free Speed: 4000 rpm
- Net Weight: 1.65(0.75) lbs(kgs)
- Overall Length: 333 mm
- Avg. Air Cons: 3(84) cfm(l/min)
- Sound Pressure: 81.5 dB(A)
- Vibration Level: <2.5 m/s²
- Air Inlet Size:1/4″ PT/NPT
- Min. Hose Size: 3/8(10) inch(mm)
 |
| Two-Gear Mechanism |
| Model | Spindle Thread inch | Chuck/Collet Capacity inch(mm) | Free Speed rpm | Net Weight lbs(kgs) | Overall Length mm | Avg. Air Cons cfm(l/min) | Sound Pressure dB(A) | Vibration Level m/s² |
| ZD2328 | 1/4″-28 | – | 4000 | 1.4(0.64) | 240 | 3(84) | 81.5 | <2.5 |
| ZD2328L | 1/4″-28 | – | 4000 | 1.65(0.75) | 308 | 3(84) | 81.5 | <2.5 |
| ZD2329 | 1/4″-28 | – | 4000 | 1.4(0.64) | 256 | 3(84) | 81.5 | <2.5 |
| ZD2329L | 1/4″-28 | – | 4000 | 1.65(0.75) | 333 | 3(84) | 81.5 | <2.5 |
| ZD2331 | – | 1/8(3) | 4000 | 1.4(0.64) | 240 | 3(84) | 81.5 | <2.5 |
| ZD2331L | – | 1/8(3) | 4000 | 1.65(0.75) | 308 | 3(84) | 81.5 | <2.5 |
| ZD2320 | – | 1/8(3) | 4000 | 1.4(0.64) | 256 | 3(84) | 81.5 | <2.5 |
| ZD2320L | – | 1/8(3) | 4000 | 1.65(0.75) | 333 | 3(84) | 81.5 | <2.5 |
| ZD2349 | – | (2.4~5.9) | 4000 | 1.4(0.64) | 240 | 3(84) | 81.5 | <2.5 |
| ZD2349L | – | (2.4~5.9) | 4000 | 1.65(0.75) | 308 | 3(84) | 81.5 | <2.5 |
| ZD2340 | – | (2.4~5.9) | 4000 | 1.4(0.64) | 256 | 3(84) | 81.5 | <2.5 |
| ZD2340L | – | (2.4~5.9) | 4000 | 1.65(0.75) | 333 | 3(84) | 81.5 | <2.5 |
| ZD2333 | 1/4″-28 | – | 3600 | 1.9(0.86) | 259 | 3.5(99) | 82 | <2.5 |
| ZD2333L | 1/4″-28 | – | 3600 | 2.2(1) | 327 | 3.5(99) | 82 | <2.5 |
| ZD2332 | 1/4″-28 | – | 3600 | 1.9(0.86) | 274 | 3.5(99) | 82 | <2.5 |
| ZD2332L | 1/4″-28 | – | 3600 | 2.2(1) | 351 | 3.5(99) | 82 | <2.5 |
| ZD2335 | – | 1/8(3) | 3600 | 1.9(0.86) | 259 | 3.5(99) | 82 | <2.5 |
| ZD2335L | – | 1/8(3) | 3600 | 2.2(1) | 327 | 3.5(99) | 82 | <2.5 |
| ZD2334 | – | 1/8(3) | 3600 | 1.9(0.86) | 274 | 3.5(99) | 82 | <2.5 |
| ZD2334L | – | 1/8(3) | 3600 | 2.2(1) | 351 | 3.5(99) | 82 | <2.5 |
| ZD2352 | – | (2.4~5.9) | 3600 | 1.9(0.86) | 259 | 3.5(99) | 82 | <2.5 |
| ZD2352L | – | (2.4~5.9) | 3600 | 2.2(1) | 327 | 3.5(99) | 82 | <2.5 |
| ZD2351 | – | (2.4~5.9) | 3600 | 1.9(0.86) | 274 | 3.5(99) | 82 | <2.5 |
| ZD2351L | – | (2.4~5.9) | 3600 | 2.2(1) | 351 | 3.5(99) | 82 | <2.5 |
*Exhaust Type: Adjust Side Exhaust
*Air Inlet Size: 1/4″ PT/NPT
*Minch Hose Size: 3/8(10) inch(mm)
Angle Drill Attachments
 |  |  |  |
| ZD90T Thread type Spindle Thread: 1/4″-28 | ZD90TL Thread type Spindle Thread: 1/4″-28 | ZD45T Thread type Spindle Thread: 1/4″-28 | ZD45TL Thread type Spindle Thread: 1/4″-28 |
 |  |  |  |
| ZD90CH Chuck type Chuck Capacity: 1/8(3) inch(mm) | ZD90CHL Chuck type Chuck Capacity: 1/8(3) inch(mm) | ZD45CH Chuck type Chuck Capacity: 1/8(3) inch(mm) | ZD45CHL Chuck type Chuck Capacity: 1/8(3) inch(mm) |
 |  |  |  |
