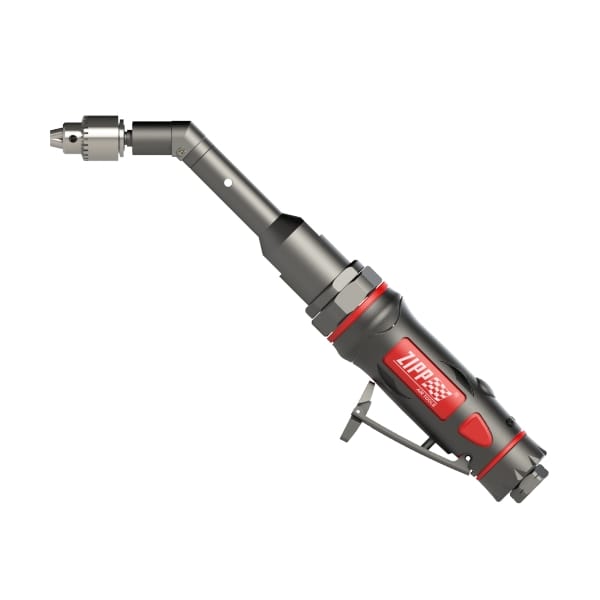

ZD2320 45˚ Industrial Angle Drill – Chuck Type
The ZD2320 is a robust 45-degree industrial angle drill designed for professionals requiring precision and flexibility when working in tight, angled spaces. Featuring a universal chuck-type spindle, it accommodates a wide range of cutting tools, making it ideal for drilling, reaming, and countersinking in various materials, including metals, composites, and plastics. Its compact, ergonomic design and durable construction make it a reliable choice for aerospace, automotive, shipbuilding, and MRO applications.
Key Features & Benefits
✅ 45° Angled Head for Optimized Access
- Perfect for drilling in areas where straight or 90° tools cannot reach.
- Ideal for tasks such as aircraft assembly, panel work, and frame construction.
✅ Chuck-Type Spindle for Tool Versatility
- Accepts a variety of drill bits and cutting tools, offering maximum application flexibility.
- Quick-change capability supports efficient multi-step operations.
✅ Compact & Lightweight Design for Operator Comfort
- Reduces operator fatigue and improves maneuverability in confined spaces.
- Engineered for long-duration usage without performance compromise.
✅ Industrial-Grade Motor for Consistent Power
- Delivers stable torque and speed for precise hole-making and finishing.
- Optimized for high-volume, continuous-duty environments.
✅ Ergonomic Grip & Balanced Weight Distribution
- Enhances control, accuracy, and reduces operator strain.
- Improves productivity, especially during extended use.
✅ Heavy-Duty Construction for Industrial Reliability
- Withstands demanding environments, including aerospace and heavy industry.
- Designed for long service life and minimal maintenance requirements.
Typical Applications
🔹 Aerospace assembly (skins, brackets, stringers)
🔹 Automotive production and repair
🔹 Precision fabrication and metalworking
🔹 Shipbuilding and marine engineering
🔹 Maintenance, repair, and overhaul (MRO) operations
Why Choose ZD2320?
✔️ Versatile chuck for a wide range of tools
✔️ 45° head design for angled, confined drilling
✔️ Compact, ergonomic, and operator-friendly
✔️ Industrial-grade motor for demanding applications
✔️ Proven durability in harsh environments
Specification:
- Chuck Capacity: 1/8/(3) inch(mm)
- Free Speed: 4000 rpm
- Net Weight: 1.4(0.64) lbs(kgs)
- Overall Length: 256 mm
- Avg. Air Cons: 3(84) cfm(l/min)
- Sound Pressure: 81.5 dB(A)
- Vibration Level: <2.5 m/s²
- Air Inlet Size:1/4″ PT/NPT
- Min. Hose Size: 3/8(10) inch(mm)
 |
| Two-Gear Mechanism |
| Model | Spindle Thread inch | Chuck/Collet Capacity inch(mm) | Free Speed rpm | Net Weight lbs(kgs) | Overall Length mm | Avg. Air Cons cfm(l/min) | Sound Pressure dB(A) | Vibration Level m/s² |
| ZD2328 | 1/4″-28 | – | 4000 | 1.4(0.64) | 240 | 3(84) | 81.5 | <2.5 |
| ZD2328L | 1/4″-28 | – | 4000 | 1.65(0.75) | 308 | 3(84) | 81.5 | <2.5 |
| ZD2329 | 1/4″-28 | – | 4000 | 1.4(0.64) | 256 | 3(84) | 81.5 | <2.5 |
| ZD2329L | 1/4″-28 | – | 4000 | 1.65(0.75) | 333 | 3(84) | 81.5 | <2.5 |
| ZD2331 | – | 1/8(3) | 4000 | 1.4(0.64) | 240 | 3(84) | 81.5 | <2.5 |
| ZD2331L | – | 1/8(3) | 4000 | 1.65(0.75) | 308 | 3(84) | 81.5 | <2.5 |
| ZD2320 | – | 1/8(3) | 4000 | 1.4(0.64) | 256 | 3(84) | 81.5 | <2.5 |
| ZD2320L | – | 1/8(3) | 4000 | 1.65(0.75) | 333 | 3(84) | 81.5 | <2.5 |
| ZD2349 | – | (2.4~5.9) | 4000 | 1.4(0.64) | 240 | 3(84) | 81.5 | <2.5 |
| ZD2349L | – | (2.4~5.9) | 4000 | 1.65(0.75) | 308 | 3(84) | 81.5 | <2.5 |
| ZD2340 | – | (2.4~5.9) | 4000 | 1.4(0.64) | 256 | 3(84) | 81.5 | <2.5 |
| ZD2340L | – | (2.4~5.9) | 4000 | 1.65(0.75) | 333 | 3(84) | 81.5 | <2.5 |
| ZD2333 | 1/4″-28 | – | 3600 | 1.9(0.86) | 259 | 3.5(99) | 82 | <2.5 |
| ZD2333L | 1/4″-28 | – | 3600 | 2.2(1) | 327 | 3.5(99) | 82 | <2.5 |
| ZD2332 | 1/4″-28 | – | 3600 | 1.9(0.86) | 274 | 3.5(99) | 82 | <2.5 |
| ZD2332L | 1/4″-28 | – | 3600 | 2.2(1) | 351 | 3.5(99) | 82 | <2.5 |
| ZD2335 | – | 1/8(3) | 3600 | 1.9(0.86) | 259 | 3.5(99) | 82 | <2.5 |
| ZD2335L | – | 1/8(3) | 3600 | 2.2(1) | 327 | 3.5(99) | 82 | <2.5 |
| ZD2334 | – | 1/8(3) | 3600 | 1.9(0.86) | 274 | 3.5(99) | 82 | <2.5 |
| ZD2334L | – | 1/8(3) | 3600 | 2.2(1) | 351 | 3.5(99) | 82 | <2.5 |
| ZD2352 | – | (2.4~5.9) | 3600 | 1.9(0.86) | 259 | 3.5(99) | 82 | <2.5 |
| ZD2352L | – | (2.4~5.9) | 3600 | 2.2(1) | 327 | 3.5(99) | 82 | <2.5 |
| ZD2351 | – | (2.4~5.9) | 3600 | 1.9(0.86) | 274 | 3.5(99) | 82 | <2.5 |
| ZD2351L | – | (2.4~5.9) | 3600 | 2.2(1) | 351 | 3.5(99) | 82 | <2.5 |
*Exhaust Type: Adjust Side Exhaust
*Air Inlet Size: 1/4″ PT/NPT
*Minch Hose Size: 3/8(10) inch(mm)
Angle Drill Attachments
 |  |  |  |
| ZD90T Thread type Spindle Thread: 1/4″-28 | ZD90TL Thread type Spindle Thread: 1/4″-28 | ZD45T Thread type Spindle Thread: 1/4″-28 | ZD45TL Thread type Spindle Thread: 1/4″-28 |
 |  |  |  |
| ZD90CH Chuck type Chuck Capacity: 1/8(3) inch(mm) | ZD90CHL Chuck type Chuck Capacity: 1/8(3) inch(mm) | ZD45CH Chuck type Chuck Capacity: 1/8(3) inch(mm) | ZD45CHL Chuck type Chuck Capacity: 1/8(3) inch(mm) |
 |  |  |  |
