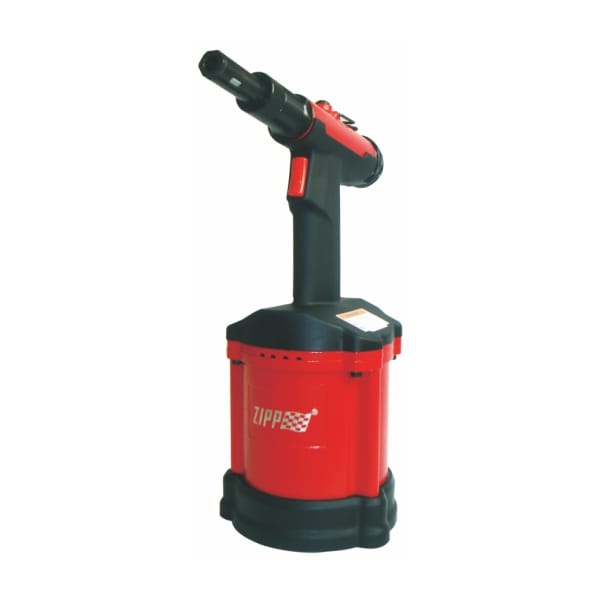

ZT2318B 1/4 inch Air Hydraulic Blind Bolt Tool
- ZT2318H(D) / ZT2318B(D) come with “ONE ” nose assembly only.
- ZT2318HK(D) included with “FOUR ” sets of lock bolt nose assemblies & 3/16”, 1/4” blind rivet conversion kit.
Standard Nose Assembly | Optional Extended Nose Assembly |
For Fixed Grip Lock Bolts | |
3/16″ P/N: 202HC1 – Compatible with HUCK® tools 1/4″ P/N: 231HC2 – Compatible with HUCK® tools | 3/16″ P/N: 202HC1L – Compatible with HUCK® tools 1/4″ P/N: 231HC2L – Compatible with HUCK® tools |
For Multi Grip Lock Bolts | |
3/16″ P/N: 202HM1 – Compatible with HUCK® tools 1/4″ P/N: 202HM2 – Compatible with HUCK® tools | 3/16″ P/N: 202HM1L – Compatible with HUCK® tools 1/4″ P/N: 202HM2 – Compatible with HUCK® tools |
For Blind Bolts | |
1/4″ P/N: 202HB2 |
Blind Rivet Conversion Kit | Blind Rivet Conversion Kit |
P/N: 2318RS – 2pcs Jaws for 3/16″ or 1/4″ blind rivets | P/N: 2318RS-4 – 2pcs Jaws for 1/8″ or 5/12″ blind rivets P/N: 2318RS-8 – 3pcs Jaws for 5/16″ blind rivets |
Specification:
- Traction Power: 5000(2300) Ibf(kgf)
- Stroke Length: 18 mm
- Net Weight: 5.6(2.5) Ibs(kgs)
- Nosepieces Equipped: P/N 202HB2
- Max. Capacity: 1/4″ blind bolt
DO NOT apply air pressure over 110 psi / 7.5 bar to these tools.
*Please refer to the blind rivet specification to ensure the tensile strength is lower than the traction power of the model you select.
Model | Traction Power lbf(kgf) | Stroke Length inch(mm) | Net Weight lbs(kgs) | Nosepieces Equipped | Max. Capacity |
ZT2318H | 5000(2300) | 23/32(18) | 5.6(2.5) | Choose one of 202HM1, 202HC1, 202HM2 or 231HC2 | 1/4″ lock bolts |
ZT2318HD | 5000(2300) | 23/32(18) | 5.6(2.5) | Choose one of 202HM1, 202HC1, 202HM2 or 231HC2 | 1/4″ lock bolts |
ZT2318HK | 5000(2300) | 23/32(18) | 5.6(2.5) | Kit includes 202HM1, 202HC1, 202HM2 231HC2 & 2318RS Nose Assemblies | 1/4″ lock bolts |
ZT2318HDK | 5000(2300) | 23/32(18) | 5.6(2.5) | Kit includes 202HM1, 202HC1, 202HM2 231HC2 & 2318RS Nose Assemblies | 1/4″ lock bolts |
ZT2318B | 5000(2300) | 23/32(18) | 5.6(2.5) | P/N 202HB2 | 1/4″ blind bolt |
ZT2318BD | 5000(2300) | 23/32(18) | 5.6(2.5) | P/N 202HB2 | 1/4″ blind bolt |
